Rp178.000

PZEM-022 AC 6in1 Electric Meter with Open CT

Stok tinggal <20, beli segera!
Terjual9
Wishlist6

Dijual oleh akhi_shop

Informasi produk

PZEM-022 AC 6in1 Electric Meter with Open CT

  • Berat
    125 Gram
  • Kondisi
    Baru
  • Pemesanan Min
    1 Buah
  • Kategori
    1. Home
    2. Pertukangan
    3. Perlengkapan Listrik
    4. Komponen Listrik
  • Etalase

Deskripsi produk

PZEM-022 AC 6in1 Electric Meter with Open CT

SKU : Q02004

TERMASUK SPLIT CT SEPERTI GAMBAR

Designed for home use,DIY remould,power distribution cabinet,factory assembly line testing and other area which you need.
Make your life more easily and more efficient.

2018 New PZEM-022 6in1 Volt Amp Watt Energy Frequency Electricity Energy Energy Meter & Power Meter

Product Type : PZEM-022 AC Single Phase electric Meter

Function :
1. Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor)
2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm)
3. Power alarm threshold preset function (can set power alarm threshold).
4. The energy can be reset use the key.
5. Store data when power off.

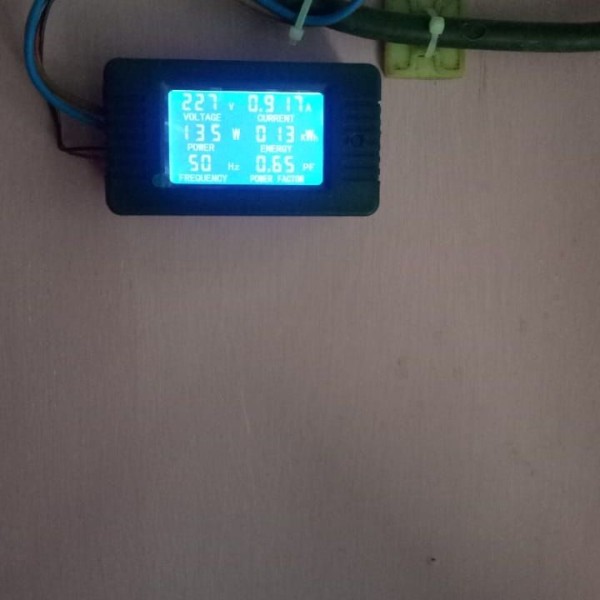

6. Large-screen LCD
7. Backlight function.

Test Parameters Range :
1. Voltage: 80~260V
2. Current: 0~100A
3. Power: 0~22kW
4. Energy: 0~999kWh
5. Frequency: 45~65Hz
6. Power factor: 0~1PF

Accuracy : 1.0 grade
Display Size : 51*30mm
Product Size : 89.6*49.6*24.3mm
Unit Weight : 105g(with coil CT)

Precautions :
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated power.

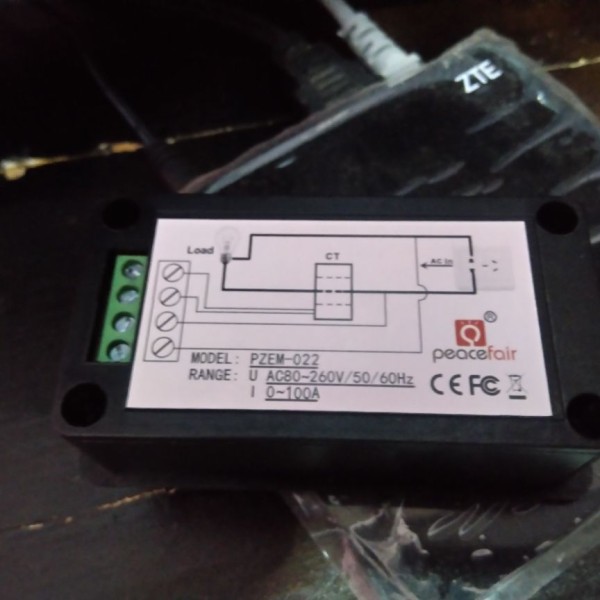

3. Wiring order can't be wrong.
