Rp179.000

Cashback 4%

NEWEST ELM327 1.5 ANDROID IOS WIFI SCANNER OBD2

Terjual24

Dijual oleh RACHMAN-SHOP

Tersedia COD (Bayar di Tempat)

Bayar melalui kurir saat pesanan tiba

Informasi produk

NEWEST ELM327 1.5 ANDROID IOS WIFI SCANNER OBD2

  • Berat
    300 Gram
  • Kondisi
    Baru
  • Pemesanan Min
    1 Buah
  • Kategori
    1. Home
    2. Otomotif
    3. Spare Part Mobil
    4. ECU & Kelistrikan Mobil
  • Etalase

Deskripsi produk

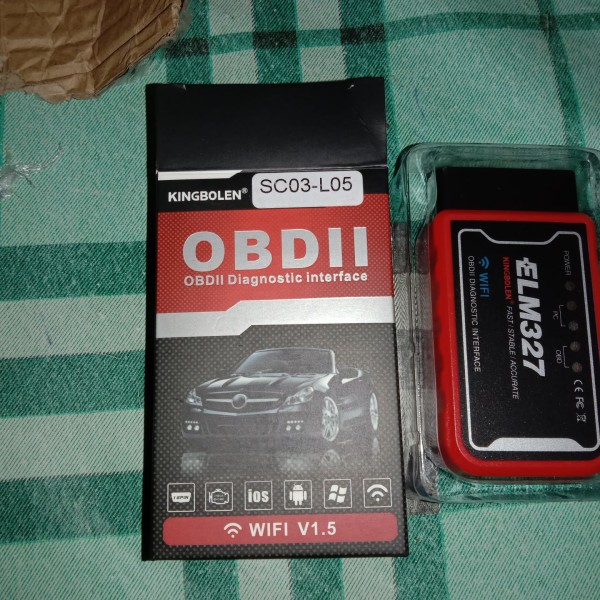

NEWEST ELM327 1.5 ANDROID IOS WIFI SCANNER OBD2

Wifi ELM327 interface is able to detect and interpret obd2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, for iOS). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 x 1.25x 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are obd2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.
Features:
*Firmware Version V1.5 (Supports more protocols SAE J1850 than V2.1).
*With chip:PIC18F25K80 ,supports all elm327 fucntions,in program ELM327 identifier,it shows full functions.
It understand commands such as ATPPS and other.
The frequency of the crystal oscillator is 4mHz.
Main Functions:
With proper software installed in the host device, you may have following parameters read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Support Protocols:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN

Lainnya di toko ini

Lihat Semua
ELM327 V1.5 Bluetooth dengan PIC18F25K80
Rp 159.000
Kota Bandung
starstarstarstarstar (2)
Logo RACHMAN-SHOP
shop_badgeRACHMAN-SHOP
locationKota Bandung • 3 jam yang lalu

Ulasan pembeliLihat Semua

NEWEST ELM327 1.5 ANDROID IOS WIFI SCANNER OBD2

4.8/5
·5 ulasan

Ulasan paling membantu

NEWEST ELM327 1.5 ANDROID IOS WIFI SCANNER OBD2

full-starfull-starfull-starfull-starfull-star
Barangnya sangat baik, dan kami suda mencobanya di mobil Honda jazz, dan berhasil sempurna.terimakasih Rachman-Shop
1 bulan lalu oleh Suharningsih

Diskusi Paling Membantu

NEWEST ELM327 1.5 ANDROID IOS WIFI SCANNER OBD2

fani27 Feb 2020

Buat jazz bisa?

Penjual

 • 27 Feb 2020

bisa gan

4 jawaban lainnya

Sanjo3 minggu lalu

kmrrn ud beli diisini yg versi bluuetooth dan berhasil, mo coba yg versi wifi tpi takut ga konek. bisa. d retur gga ya?

Penjual

 • 3 minggu lalu

bisa gan
