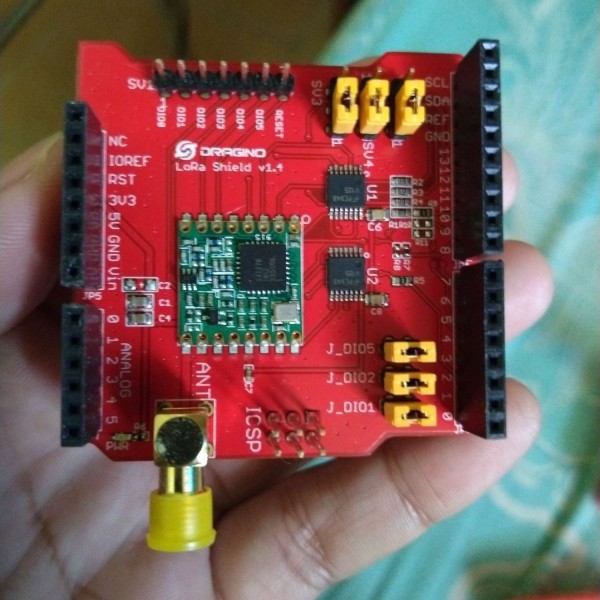

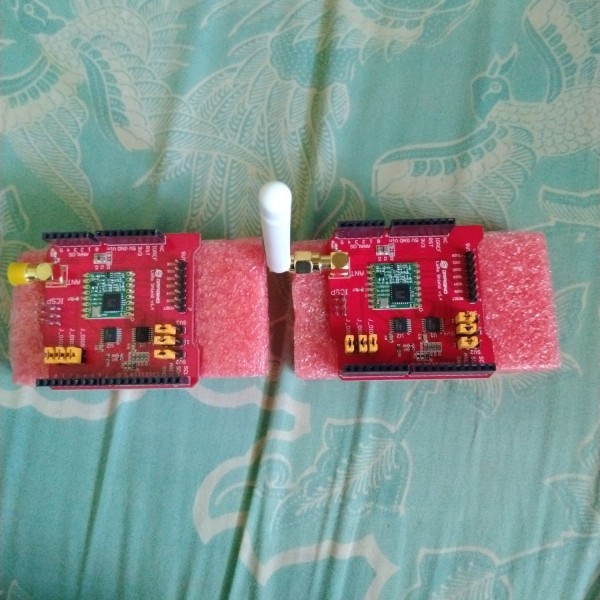

Lora Shield for Arduino 915Mhz - dragino

Rp 350.000

Produk dari pdp-os-icon Power Merchant

Stok tinggal <20, beli segera!
Dilihat
2,4rb
Transaksi Berhasil
98.25% (185)
Wishlist
0

Informasi produk

Lora Shield for Arduino 915Mhz - dragino

  • Berat
    25 Gram
  • Kondisi
    Baru
  • Pemesanan Min
    1 Buah
  • Kategori
    1. Home
    2. Pertukangan
    3. Hand Tools
    4. Tool Kit Set
  • Etalase

Deskripsi produk

Lora Shield for Arduino 915Mhz - dragino

----++++ perhatian tidak terima dropship order trims ++++----

Frequency Band : 915 Mhz
Features:
Compatible with 3.3v or 5v I/O Arduino Board.
Low power consumption
Compatible with Arduino Leonardo, Uno, Mega, DUE
External Antenna via I-Pex connector

Summary :
168 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
Low RX current of 10.3 mA, 200 nA register retention.
Fully integrated synthesizer with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
Built-in bit synchronizer for clock recovery.
Preamble detection.
127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
Packet engine up to 256 bytes with CRC.
Built-in temperature sensor and low battery indicator.

Original Dragino.com
