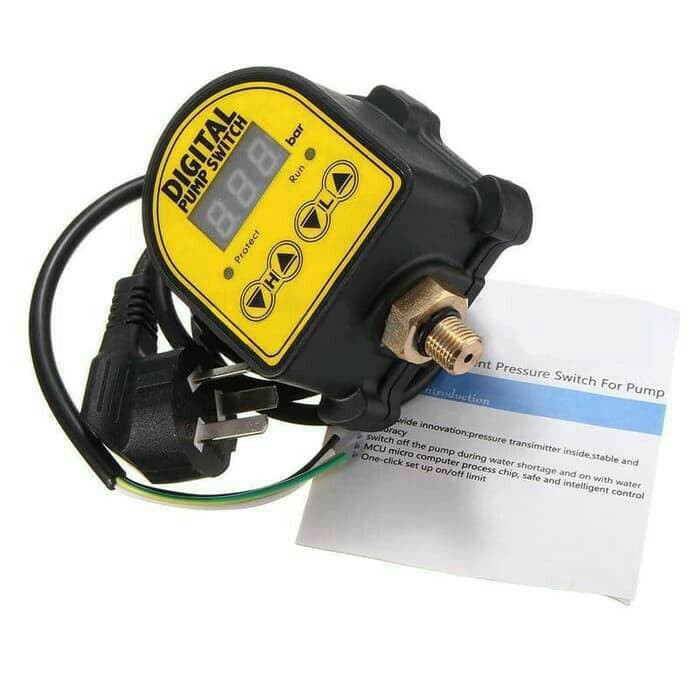

Digital Pump Switch Pressure Controller Water Pompa Air Sanyo

Stok terbatas! Tersedia >50
Dilihat
711
Transaksi Berhasil
100%(3 Produk)
Wishlist
12
Informasi Produk
  • Berat
    1.400 gram
  • Kondisi
    NEW
  • Pemesanan Min.
    1 Buah
  • Kategori
    1. Home
    2. Elektronik
    3. Perangkat Elektronik Lainnya
    4. Perangkat Elektronik Lainnya Lainnya
  • Etalase
    Alat Ukur Tekanan

Deskripsi Produk

Specification:
Brand new
Wiring: 3 wires
White: Positive
Black: Negative
Green& Yellow: Ground
Relay Capacity: 220V AC 10A.
Fluid Temperature: 80 degrees
Socket type: International three flat pins plug
Overall Size (approx.): 85x52x112mm
One is 88cm; the short one is 35cm.
Package Size (approx.): 12x9.3x9.8cm (LxWxH)
Long Life: can be used continuously for more than 20 million times.
Working Pressure Range: 0-10 Bar, matching with all pumps Cable length: the Long
Output signal: active output, to provide pump 220V, start the pump below 1.5KW directly.

Features:

Pressure transmitter inside, stable and accuracy.

Switch of the pump during water shortage and on with water.

MCU micro-computer process chip, safe and intelligent control.

One-click set up on/off limit.

Installation:
If the pump doesn't have a check valve, then a check valve must be installed in front of the pressure, in this case the pump may on/off ,or frequently.
When you turn on the tap water, if the pump is on/off time to time, please adjust the H valve to a larger valve.
If the pump keep runs with stopping, please lower the H valve, on the other hand, if the pump doesn't work, please set the L valve higher.

Package Included:
1x Digital Switch Controller
1 x English user manual
